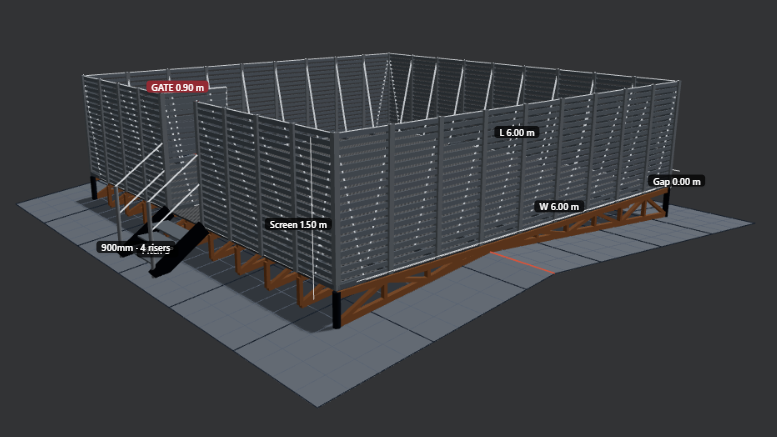

Set a quick rectangular/square platform or Draw the platform in plan, set the pitch — including split ridges — and Fair Dinkum Mechdecks rolls out a 3D model, priced BOQ, cut list and draft shop drawing set — within minutes. No CAD licence, no back-and-forth. PLACE HVAC Units with load rating engineered in so you can understand how and where to place things.
Silent walkthrough of the full workflow — polygon trace, 3D preview, shop drawings, BOQ, contractor→installer handoff.
Build the layout once. The model, checks, quantities, costs and client deliverables stay tied to the same job as it changes.
Start with dimensions or trace an architectural plan. Handle odd shapes, openings, obstacles and real roof geometry — split ridges with their own falls per side — without redrawing the job in separate software.
Mix slatted screen, 110 mm fin Standard Louvre Wall, translucent Acoustic Wall Option B, guardrail, gates, stairs and ladders by edge — with wall transparency control where you want the see-through look.
Add any number of named gaps per side for stairs, gates and ducting — full height or partial, top or bottom, with the right supports costed in.
A visible keep-clear zone follows screened edges — override it per unit when access allows. Guardrails are added where the deck drop exceeds 300 mm.
Add HVAC units in rectangle, L or U shapes with dimensions, weights and colours. See total capacity, spread load, utilisation and overload warnings.
Review trusses, posts, braces, battens, roof falls and treatments from every side before the quote goes out.
Separate platform, screen, louvre, acoustic, guardrail and access costs, then download the full bill of quantities as CSV or PDF.
Adjust report wording and costs, save company templates, and issue a draft S01–S10 shop drawing set with connection details.
Clients move through the 3D, plan and side views, inspect each HVAC unit, and pin comments right on the model — no editing or pricing. Track when the link is opened from your dashboard.
Invite teammates, keep company pricing consistent, and send contractor jobs to an installer inbox to accept and continue.
Work is saved as you go. Keep revision snapshots, restore earlier versions and reuse saved client details on the next quote.
